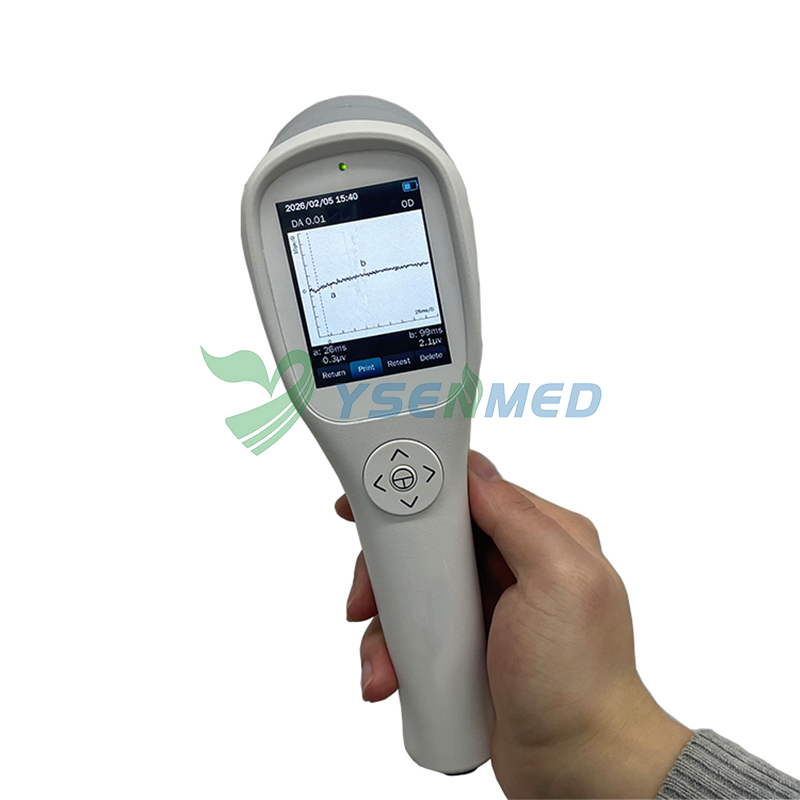

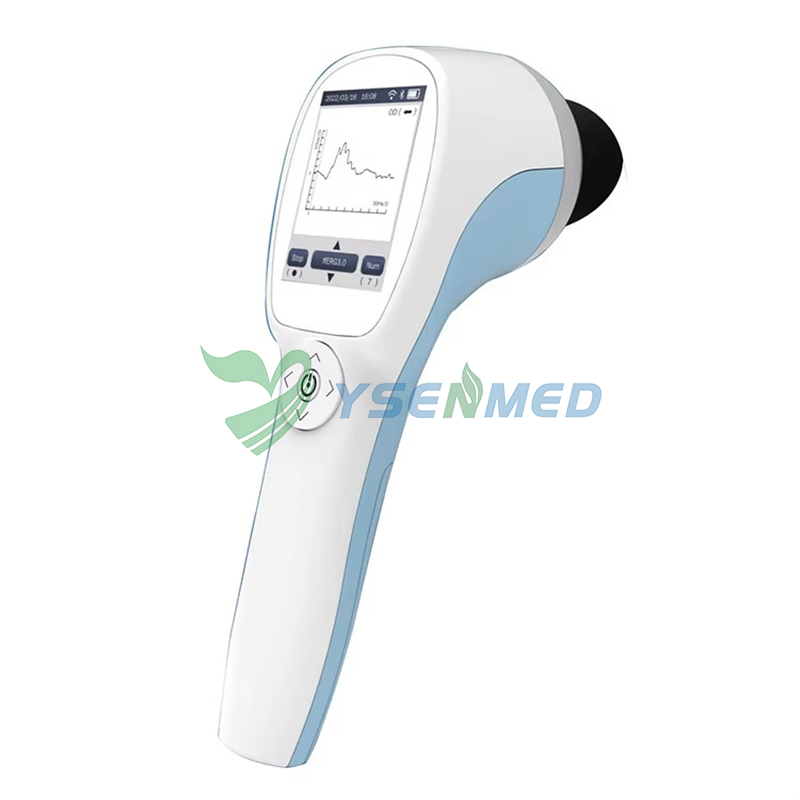

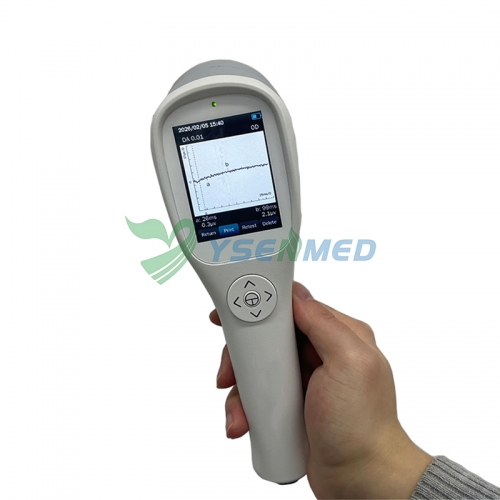

Medical Ophthalmic Flicker ERG Portable Visual Electrophysiology Electroretinograph Tester YSENT-ERG300A
Item No.: YSENT-ERG300A
A portable visual electrophysiology tester featuring real-time pupil tracking, skin electrodes, and 12 flexible tests for DR, pediatric, and animal exams with tens of thousands of data records.
| Product parameters | |
| Brand: | YSENMED |
| MOQ: | 1 |
| Package: | Wooden Package |
| Ship From: | Guangzhou |
| Lead Time: | 3-15 days |
| Customization: | Customized package |
Description
Model: YSENT-ERG300A
Features:
- 1. Diabetic retinopathy, Child examination, Animal examination.
- 2. Real-time feedback of impedance values.
- 3. Skin electrodes: Adhesive design for easy placement of electrodes. Repetitive use, less consumables.
- 4. Pupil tracking: real-time tracking of position and diameter.
- 5. changes: Real-time adjustment of the flash.
12 tests are supported, chosen according to the patient’s needs.
Independent storage of historical data for tens of thousands of patients.
Specifications:
| Technical Data | |
|---|---|
| Examination items | |
| Flash ERG | Dark-adapted0.01, Dark-adapted3.0, Dark-adapted3.0OPS, FlashERG Dark-adapted10.0, Light adapted3.0, Light-adapted3.0 Flicker |
| Flicker ERG | DR, Flicker4.0 Tds, Flicker4.0 Tds, Flicker16.0 Tds, Flicker32.0 Td.s (Only available for YSENT-ERG300A) |
| Flash VEP | |
| Basic parameters | |
| Common mode rejection ratio | >100db |
| Gain range | 1k, 2k, 5k, 10k, 20k, 50k, 100k |
| Low frequency cut-off | 0.1Hz, 1Hz, 7.5Hz, 100Hz |
| High frequency cut-off | 75Hz, 100Hz, 300Hz |
| Curve capture time | 100-500ms |
| Flush stimulator | |
| White background light intensity | 0, 30, 75, 100(cd/m) |
| Flash intensity | 0.01, 0.025, 3, 7.5, 10, 25(cd.s/m) |
| Stimulus light, background light colour | White, red, blue, green |
| Duration of flashing light | ≤5ms |
| Frequency of stimulation | Single stimulation 0.05Hz, 0.1Hz, 0.5Hz, String stimulation 30Hz |
| Control | Touch screen and button control |
| Monitor | 2.8inch, 320*240 |
| Printer | Extermal access |
| Operating system | Embedded Linux Systems |
| Language | Chinese, English, Russian, Spanish |
